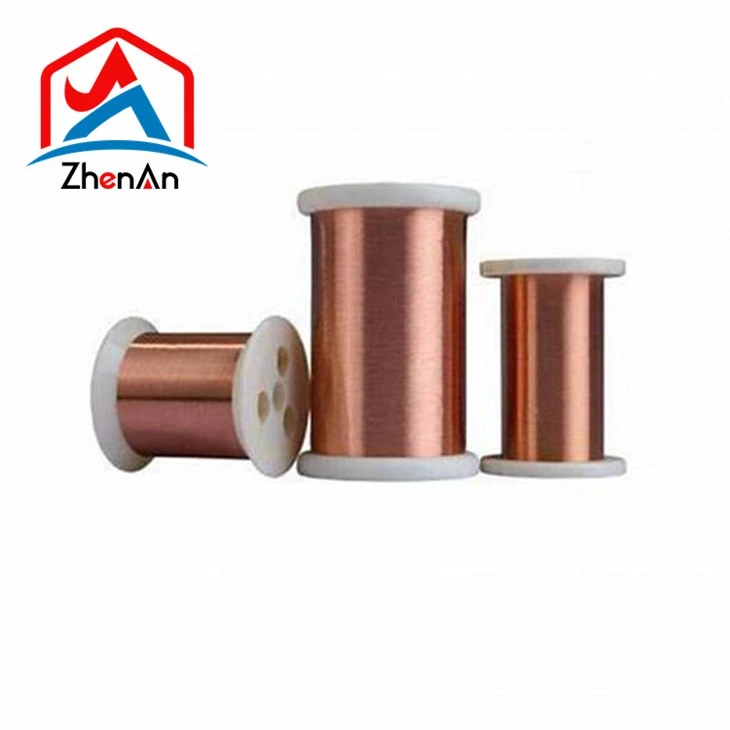

Polyester Imide Enameled Wire
Polyesterimide Enameled Round Wire Description
The production of polyester imide enameled wire involves several steps, starting with drawing the copper or aluminum wire to the desired diameter. The wire is then annealed to relieve internal stresses and improve its ductility. Next, the wire undergoes a coating process where it is passed through a bath of liquid polyester imide enamel. The coated wire is then cured in an oven to harden the enamel and ensure proper adhesion to the wire surface. Multiple layers of enamel may be applied to achieve the required insulation thickness. The finished enameled wire is rigorously tested for electrical and mechanical properties before being wound onto spools for packaging.
The Specification of Polyesterimide Composite Aluminum Enameled Wire
| Product Name | 130 class Enamelled Flat Aluminum Wire |
155 class Enamelled Flat Aluminum Wire |
180 class Enamelled Flat Aluminum Wire |
| Standard | EC60317-16GB/T7095.7 | EC60317-16 GB/T7095.3 | EC60317-28 GB/T7095.4 |
| Thermal class | 130ºC | 155ºC | 180ºC |
| Enamel Base Coat | Polyester |
Modified Polyester |
Polyester-Imide |
| Enamel Top Coat | |||
| Cross Section Range | 2-80mm2 | 2-80mm2 | 2-80mm2 |
| Range of innsulation thickness |
EC 60317-0-2G1,0.06- 0.11mmG2,0.12-0.17mm |
EC 60317-0-2GI,0.06- 0.11mmG2,0.12-0.17mm |
EC 60317-0-2G1,0.06- 0.11mmG2,0.12-0.17mm |
| Heat shock | 155ºC | 175ºC | 200ºC |
Storing polyester imide enameled wire requires a clean, dry, and temperature-controlled environment to prevent degradation of the insulation. The storage area should be free from dust, moisture, and chemicals that could damage the enamel coating. Spools should be stored off the ground on pallets or shelves to avoid contact with potentially damp surfaces. It is also important to avoid stacking spools too high to prevent deformation of the wire. Regular inspections of the storage conditions and the wire itself help ensure its quality is maintained over time.
FAQ
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
What can you buy from us?
Enamelled CCA Wire/ Enamelled Aluminum Wire/ Enamelled Copper Wire
Why should you buy from us not from other suppliers?
We have 32 machines to focus on enameled wire, about 30000 square meters for stock. Specialized in Enamelled Copper Clad Aluminium(CCA) wire for 12 years.
What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal;
Language Spoken:English,Chinese
