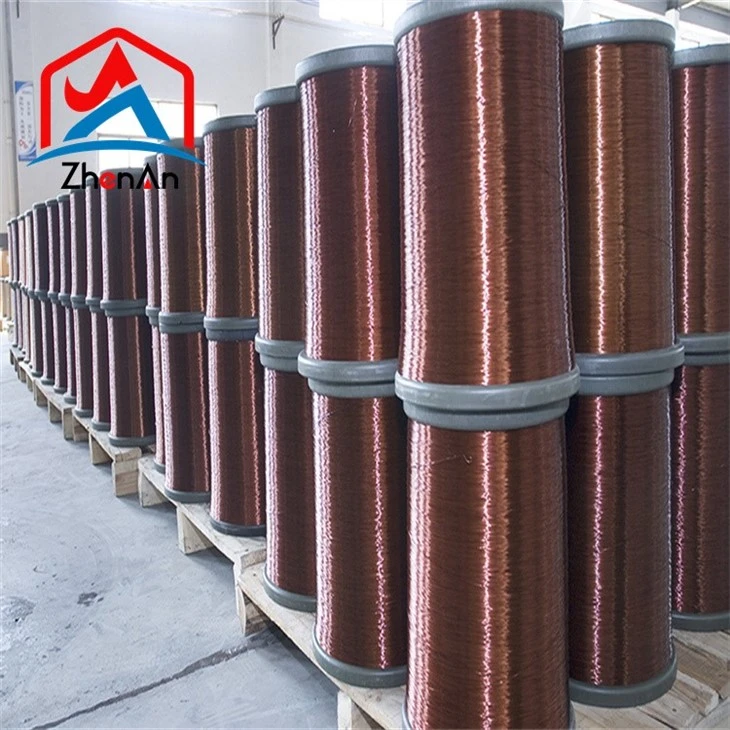

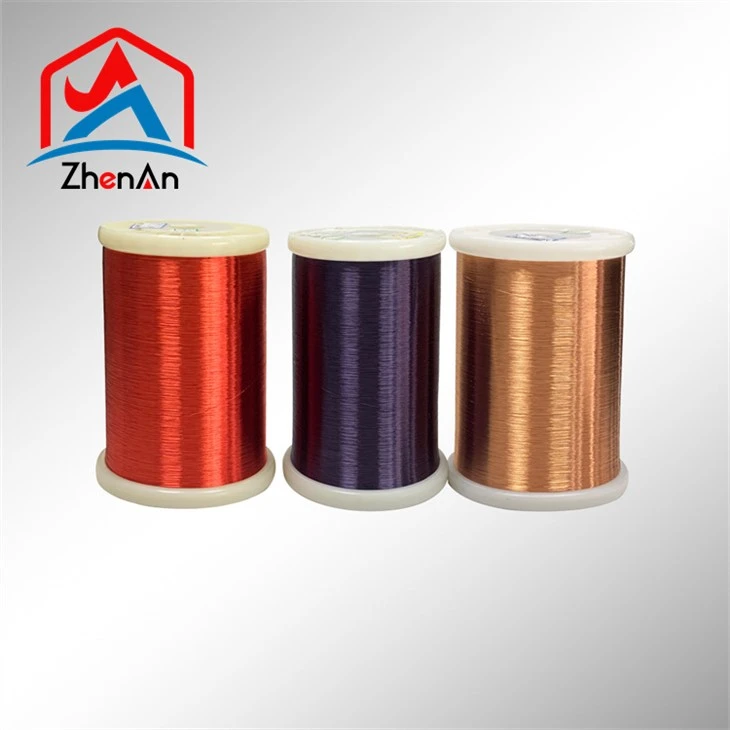

Polyester Enameled Copper Wire
Polyester Enameled Enameled Copper Round Wire Description
The material of polyester enameled wire is composed of a copper conductor and polyester resin. Polyester enameled wire is characterized by good mechanical strength, varnish adhesion properties, excellent electrical, scratch resistance, chemical resistance, thermal stability and solvent resistance.
The Specification of Polyester Enameled Copper Magnet Wire
| Model NO. |
| PEW/155 PEW/130 |
| Thermal |
| 130, 155 |
| Type |
| Insulated |
| Conductor Type |
| Solid |
| Insulation Material |
| Enameled |
| Transport Package |
| STANDARD EXPORT PACKAGE WITH WOODEN PALLETS |
| Specification |
| IEC60317-3, JIS C 3202.5, MW-5 |
| Trademark |
| ZHENAN |
| Origin |
| CHINA |
| HS Code |
| 85441100 |
| Production Capacity |
| 150, 000 Tons/Year |
PEW is polyester enameled wire, usually used to label 130 grade polyester enameled wire.
Such as: PEW/130, 155 grade to add M, such as: MPEW/155
Composition: copper conductor and polyester resin
Characteristics: good mechanical strength, film adhesion properties, excellent electrical, scratch resistance, chemical resistance, thermal stability and solvent resistance;
QZ (polyester): superior heat resistance, excellent solvent resistance, softening and aging performance is particularly good. Polyester enameled wire is generally used in transformers.
The higher the voltage, the thicker the enamel film used.
QZ = polyester, heat resistance index 130 general 155 grade in China called QZG, China's current 130 equivalent to IEC 130L class
FAQ
Q:How can we guarantee quality?
A:
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q:What can you buy from us?
A:Enamelled CCA Wire/ Enamelled Aluminum Wire/ Enamelled Copper Wire
Q:Why should you buy from us not from other suppliers?
A:We have 32 machines to focus on enameled wire, about 30000 square meters of stock area. Specialized in Enamelled Copper Clad Aluminium(CCA) wire for 12 years.
Q:What services can we provide?
A:
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal;
Language Spoken:English,Chinese
